主要用途

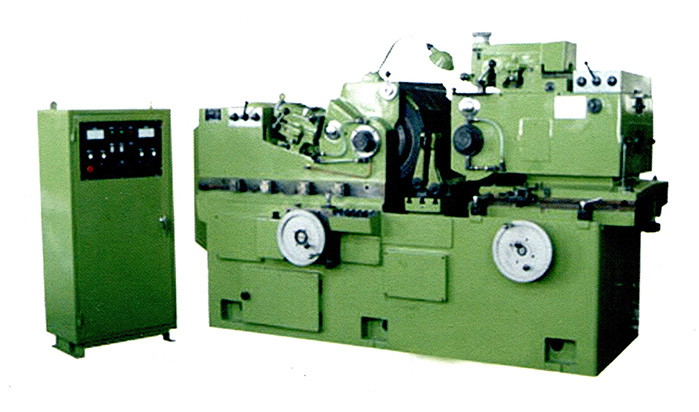

本機用來磨削圓柱面，錐面和各種成形回轉外表面，經(jīng)改裝設計還可以加工某些端面，如果用戶需要可以精化處理，提高若干項精度，以滿足軸承、軍工、汽車、拖拉機、紡織機械、電機等行業(yè)的需要。如：各種軸承外圓、滾針、滾柱、活塞銷、錠桿、羅拉、搖臂軸、壓縮機曲軸、電機轉子軸、長棒料、管料……

Application

This machine tool is used for grinding cylindrical surface,conical surface and various forming rotations The outer surface can also be machined with some end faces after modification design,ifUsers’needs can be refined to improve the accuracy of several items to meetBearing,military industry,automobile,tractor,textile machinery,motor,etclndustry needs.Such as:all kinds of bearing oute r circle,needle,roller,piston pinSpindle,roller,rocker shaft,compressor crankshaft,motor rotor shaftLong bar,tube

結構特點

1、機床布局采用雙面移動形式；
2、砂輪主軸為雙支撐結構，采用多片動壓軸承
3、導輪主軸為雙支撐結構，采用多片動壓軸承
4、導輪架進給以及砂輪修整器仿形導軌均采用滑動導軌；
5、砂輪架進給采用靜壓導軌；
6、可以配置上下料

Main structural features

1.The layout of the machine tool adopts double-sided moving form;
2.The main shaft of the grinding wheels is of double supporting structure and adopts multi piece dynamic pressure bearing
3.The main shaft of the guide wheel is of double supporting structure and adopts multi piece dynamic pressure bearing
4.The guide frame feed and the profiling guide rail of the wheel dresser are adoptedSliding guide;
5.Hydrostatic guide rail is used for grinding wheel rack feeding;
6.Loading and unloading can be configured.

工作精度

（標準試件Φ30×200mm）
圓度： 0.002mm
圓柱度：0.003mm
粗糙度：Ra0.32um

Working accuracy

(Standard testing workpiece Φ30×200mm)
Roundness:0.002mm
Cylindricty: 0.003mm
Roughness:Ra0.32um

技術參數(shù)

Technical Parameter
