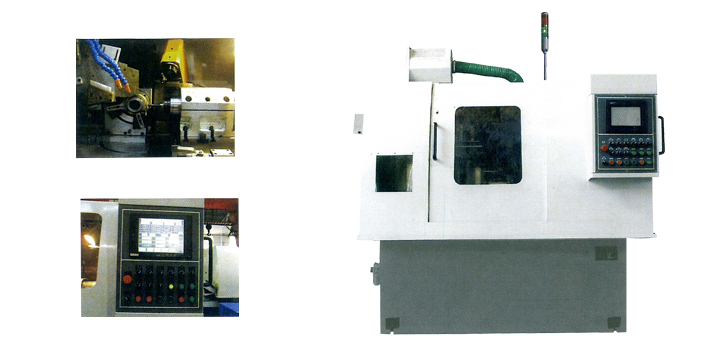

全國銷售與服務熱線數控調心滾子軸承套圈系列磨床、超精機
CNC Spherical Roller Bearing Ring
機床類型
| 3MK1412C/1 3MK1412C/2 | 數控調心滾子軸承外圈滾道磨床 | CNC outer raceway grinder for self-aligning roll bearings |
| 3MK1420B/1 3MK1420B/2 | 數控調心滾子軸承外圈滾道磨床 | CNC outer raceway grinder for self-aligning roll bearings |
| 3MK3220-T | 數控調心滾子軸承外圈滾道超精機 | CNC outer raceway superfinishing machine for self-aligning roll bearings |
| 3MK3510B | 數控調心滾子軸承內圈滾道磨床 | CNC inner raceway grinder for self-aligning roll bearings |
| 3MK3110-T | 數控調心滾子軸承內圈滾道超精機 | CNC inner raceway superfinishing machine for self-aligning roll bearings |
| 3MK1435B/1 3MK1435B/2 | 數控調心滾子軸承外圈滾道磨床 | CNC outer raceway grinder for self-aligning roll bearings |
| 3MK1440B/1 3MK1440B/2 | 數控調心滾子軸承外圈滾道磨床 | CNC outer raceway grinder for self-aligning roll bearings |
| 3MK2520B | 數控調心滾子軸承內圈滾道磨床 | CNC inner raceway grinder for self-aligning roll bearings |
| 3MK226B 3MK2210B | 數控軸承內圈擋邊磨床 | CNC inner flange grinder for bearings |
技術參數
Technical Specifications
|
型號 Model |
加工范圍 Working Scope |
加工精度 Working accuracy |
總功率 Total Power |
外形尺寸 Overall dimension |
機床總重 Total weight |
||||
|
孔徑 Bore |
外徑 Outer diameter |
寬度 Width |
尺寸差 Dimensions toterance |
圓度 Roundness |
粗糙度 Roughness |
||||
| 3MK1412C/1 | Φ52-Φ120 | 14-45 | ±12 | 1.5 | 0.4 | 16 | 180×112×167 | 4000 | |
| 3MK1412C/2 | Φ52-Φ120 | 14-45 | ±12 | 1.5 | 0.2 | 10 | 180×112×167 | 4000 | |
| 3MK1420B/1 | Φ120-Φ200 | 23-70 | ±15 | 2 | 0.4 | 19 | 197×138×177 | 6500 | |
| 3MK1420B/2 | Φ120-Φ200 | 23-70 | ±15 | 2 | 0.3 | 14 | 197×138×177 | 6500 | |
| 3MK3220-T | Φ80-200 | 16-70 | 改善20% | 0.16 | 8 | 195×146×180 | 4000 | ||
| 3MK2510B | Φ40-Φ100 | 20-80 | ±8 | 1.5 | 0.32 | 25 | 263×175×196 | 7000 | |
| 3MK226B | Φ17-Φ60 | 12-40 | 7 | 0.4 | 15 | 187×126×167 | 3000 | ||
| 3MK2210B | Φ35-Φ100 | 17-50 | 12 | 0.4 | 12 | 187×126×167 | 4000 | ||
| 3MK3310-T | Φ17-Φ100 | 16-70 | 改善20% | 0.16 | 8 | 195×146×180 | 4000 | ||
| 3MK1435B/1 | Φ180-Φ350 | 40-120 | ±20 | 3 | 0.63 | 29 | 254×167×193 | 8000 | |
| 3MK1435B/2 | Φ180-Φ350 | 40-120 | ±20 | 3 | 0.3 | 23 | 254×167×193 | 8000 | |
| 3MK1440B/1 | Φ200-Φ400 | 50-150 | ±25 | 3.5 | 0.63 | 34 | 254×167×193 | 8000 | |
| 3MK1440B/2 | Φ200-Φ400 | 50-150 | ±25 | 3.5 | 0.3 | 34 | 254×167×193 | 8000 | |
| 3MK2520B | Φ80-Φ200 | 65-125 | ±12 | 2.5 | 0.4 | 32 | 272×176×200 | 8000 | |
